True New GDM-41SL-48-HC-LD 46” 2 Door Merchandiser!.

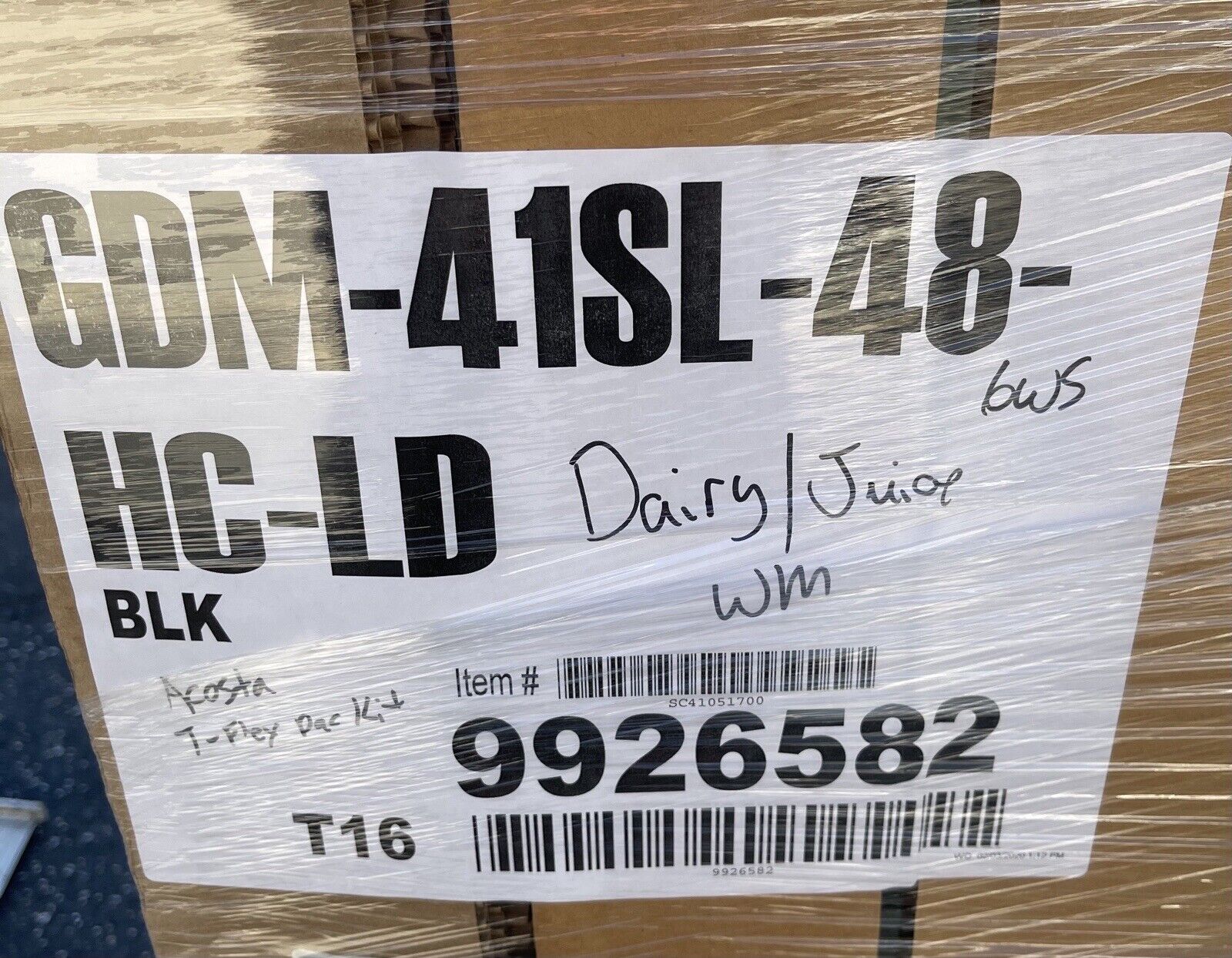

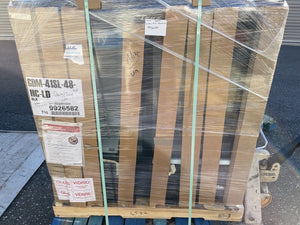

NEW in original box
True GDM-41SL-48-HC-LD 46" 2 Door Merchandiser NEW old stock. Unused in original box.
Model:
GDM-41SL-48-HC-LD
Glass Door Merchandiser:
Slide Door Lower Height Narrow Depth Refrigerator with Hydrocarbon Refrigerant & LED Lighting
ROUGH-IN DATA
Model
GDM-41SL-48-HC-LD
GDM-41SL-48-HC-LD
The world’s #1 manufacturer of glass door merchandisers.
Lower profile on convenience store coolers allows extra visibility thoughout store. Makes gondola and center store placement possible.
Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP).
High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
Exterior - non-peel or chip black powder coated cold rolled steel; durable and permanent.
Interior - attractive, NSF approved, white aluminum interior liner with stainless steel floor.
Self closing doors. Counter-balanced weight system for smooth, even, positive closing.
“Low-E”, double pane thermal insulated glass door assemblies with mitered plastic channel frames. The latest in energy efficient technology.
LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.
Entire cabinet structure is foamed-in- place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
Bottom mounted units feature
”No stoop” lower shelf to maximize product visibility.
Storage on top of cabinet.
Easily accessible condenser coil for cleaning.
Specifications subject to change without notice. Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
† Depth does not include 7/8" (23 mm) for door handles.
Doors Shelves
2 6
W D† H HP
467/8 21 473/4 1/4
1191 534 1213 N/A
Voltage
115/60/1
(total ft.) (lbs.)
(total m) (kg)
10 295
3.05 134
Cabinet Dimensions (inches)
(mm)
NEMA Amps Config.
3.4 5-15P
Model:
Glass Door Merchandiser:
GDM-41SL-48-HC-LD Slide Door Lower Height Narrow Depth Refrigerator with Hydrocarbon Refrigerant & LED Lighting
STANDARD FEATURES
DESIGN
• True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, and lower utility costs in an attractive merchandiser that brilliantly displays packaged food and beverages.
• Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP).
REFRIGERATION SYSTEM
• Frame rail fitted with leg levelers. ELECTRICAL
• Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
• See our website www.truemfg.com for latest color and sign offerings.
• Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
• Listed under NSF/ANSI Standard 7 for the storage and/or display of packaged or bottled product.
• Illuminated exterior sign panel. Variety of sign options available.
DOORS
• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
• High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
• “Low-E”, double pane thermal insulated glass door assemblies with mitered plastic channel frames. The latest in energy efficient technology.
• State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
• Each door fitted with 12” (305 mm) long handle.
• Bottom mounted condensing unit positioned for easy maintenance. “No stoop” lower shelf maximizes visibility by raising merchandised product to higher level.
• Six (6) adjustable, heavy duty PVC coated wire shelves 21 1/2”L x 14 3/4”D (547 mm x 375 mm). Four (4) chrome plated shelf clips included per shelf.
CABINET CONSTRUCTION
• LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.
• Evaporator is epoxy coated to eliminate the potential of corrosion.
• •
Exterior - non-peel or chip black powder coated cold rolled steel; durable and permanent.
Interior - attractive, NSF approved, white aluminum liner with stainless steel floor.
MODEL FEATURES
• Self closing doors. Counter-balanced weight system for smooth, even, positive closing.
SHELVING
• Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2”(13 mm) increments.
LIGHTING
PLAN VIEW
471/8" (1197 mm)
483/8" (1229 mm)
5/16" (8 mm)
21" (534 mm)
7/8" (23mm)
Model
GDM-41SL-48-HC-LD
217/8" (557 mm)
We Ship worldwide. Shipping to a commercial address is $299. If you require liftgate service it’s an additional $75. If it’s being delivered to a residence there’s an additional $75 residential delivery fee on top of that. These charges are not ours it’s what the trucking companies charge. We ship via UPS freight. Local pickup available.
“FLAT RATE SHIPPING IS ONLY VALID FOR LOWER 48 CONTIGUOUS STATES TO A COMMERCIAL ADDRESS WITH A DOCK, FORKLIFT OR VIABLE WAY TO UNLOAD THE FREIGHT.
AK, HI, PR & INTERNATIONAL MUST MESSAGE FOR SHIPPING QUOTE.”
