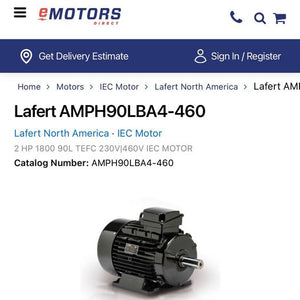

Lafert AMPH90LBA4-460 IEC Motor

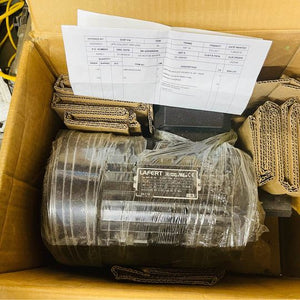

2 HP 1800 90L TEFC 230V|460V IEC MOTOR “NEW IN BOX”
Product Highlights
HP
2
RPM
1800
VOLTAGE
230V, 460V
FRAME
90L
PHASE
3
ENCLOSURE
TEFC
MATERIAL
Aluminum
MOUNTING
Removable Base, Rigid, Round Body
Features
• 15 Service Factor
• Available in 208 230/460V
• Frame sizes 100 and above available in 575/990V version
• Frame sizes 132 and above available in 460/776V
• Threaded hole output shaft is standard
• IEC - CEI - UNEL MEC

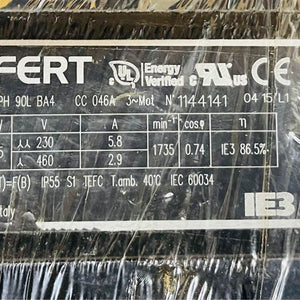

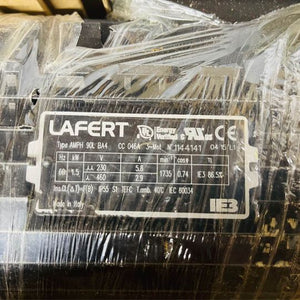

ELECTRICAL DATARATED MOTOR OUTPUT POWER2 HP
1.5 kW RATED MOTOR SPEED1800 RPMRATED MOTOR VOLTAGE230V, 460VRATED MOTOR CURRENT2.9 AMPPHASE3POLES4LOCKED ROTOR CURRENTFL CURRENT @ 208VSERVICE FACTOR1.15KVA CODENOMINAL EFFICIENCY86.5NOMINAL POWER FACTORLEADS (QTY, SIZE)9FREQUENCY60 HzCONNECTIONSTART CAPACITORRUN CAPACITORMFD
VFD (S.F. 1.0)
RATIO
HZ
VARIABLE TORQUE CONSTANT TORQUE
GENERAL DATAFRAME90LENCLOSURETEFCMOUNTINGRemovable Base, Rigid, Round BodyNUMBER OF SPEEDSAPPROXIMATE WEIGHT42lbDOUBLE DRILLED Yes FRAME MATERIALAluminumC-DIMENSION372 mmNEMA DESIGNDEGREE OF PROTECTION (IP)INSULATION CLASSFROTATIONReversibleDUTYS1CONDUIT BOX LOCATIONF2REMOVABLE FEET No ORIENTATIONHorizontalAMBIENT TEMP40°CFULL LOAD TEMPERATURE RISEFULL LOAD TEMP RISETEMP CODE
MECHANICAL DATADE BEARING6205-2ZNDE BEARING6205-2ZSHAFT DIAMETER24 mmSHAFT LENGTH50 mmGREASE TYPEGREASEABLE No HAZARDOUS LOCATIONSCSA CERTIFIEDTEMP CODE (SINE WAVE POWER)TEMP CODE (VFD POWER)
We Ship worldwide. Shipping to a commercial address is $69. If you require liftgate service it’s an additional $75. If it’s being delivered to a residence there’s an additional $75 residential delivery fee on top of that. These charges are not ours it’s what the trucking companies charge. We ship via UPS freight. Local pickup available.
