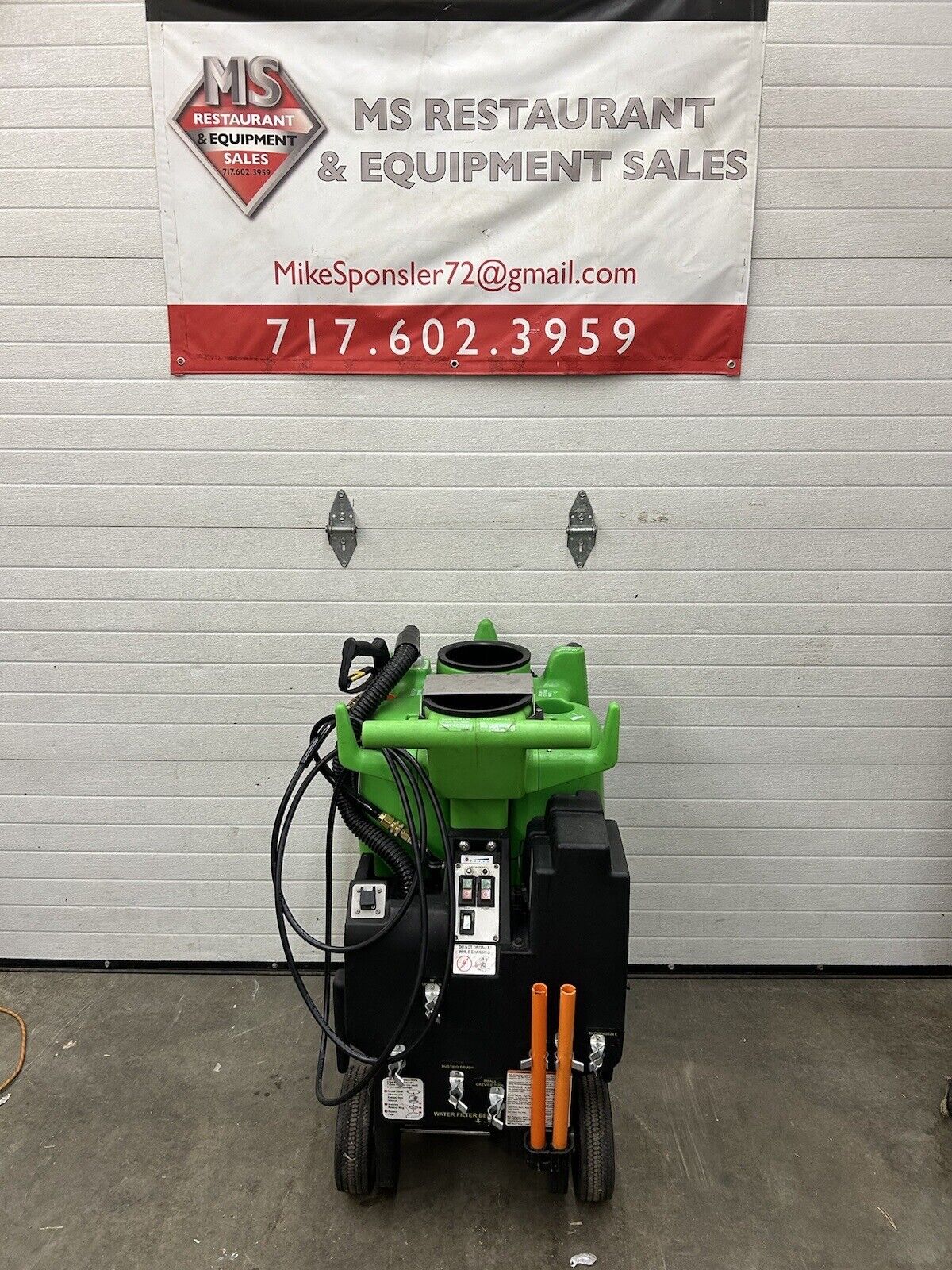

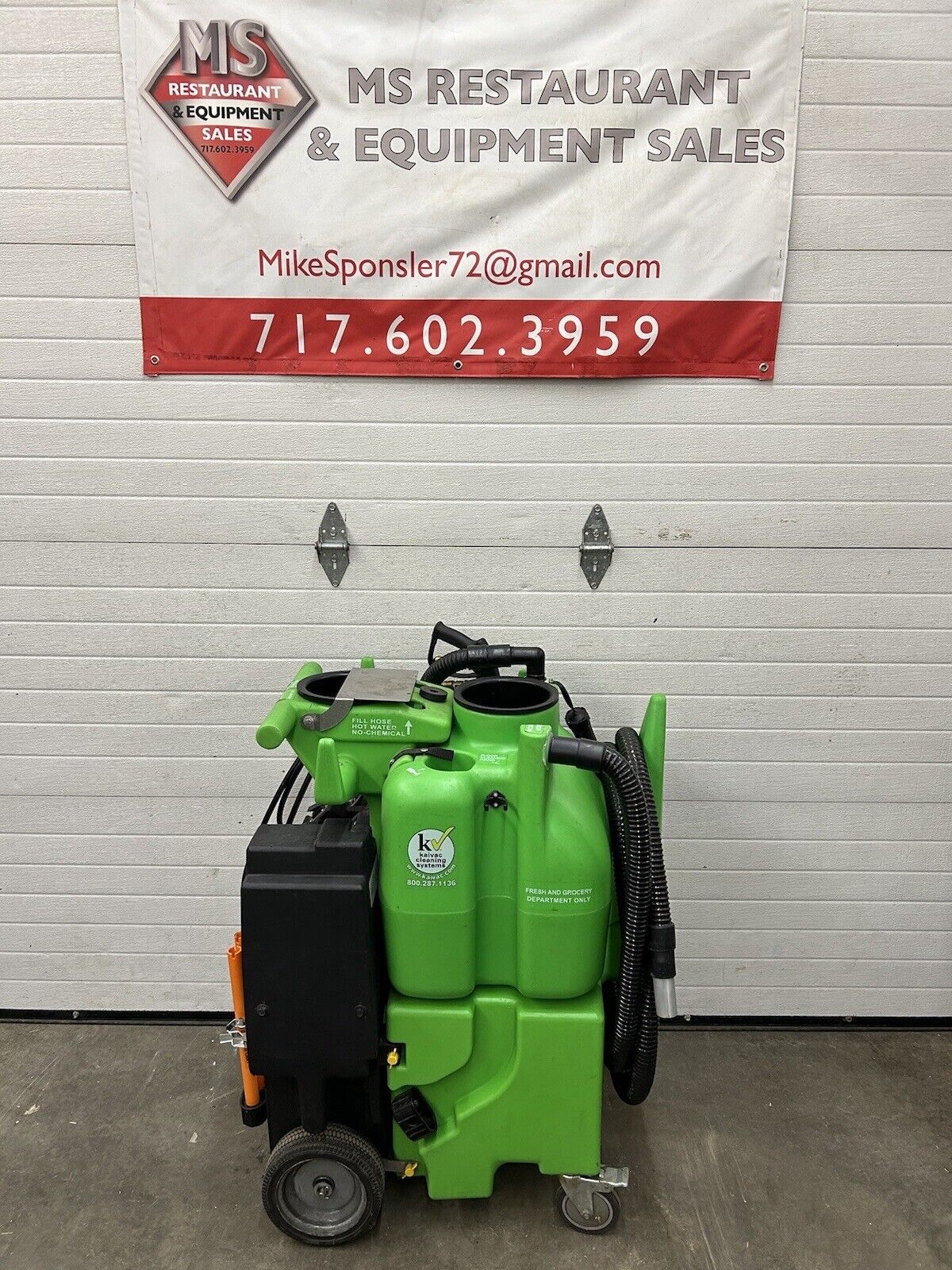

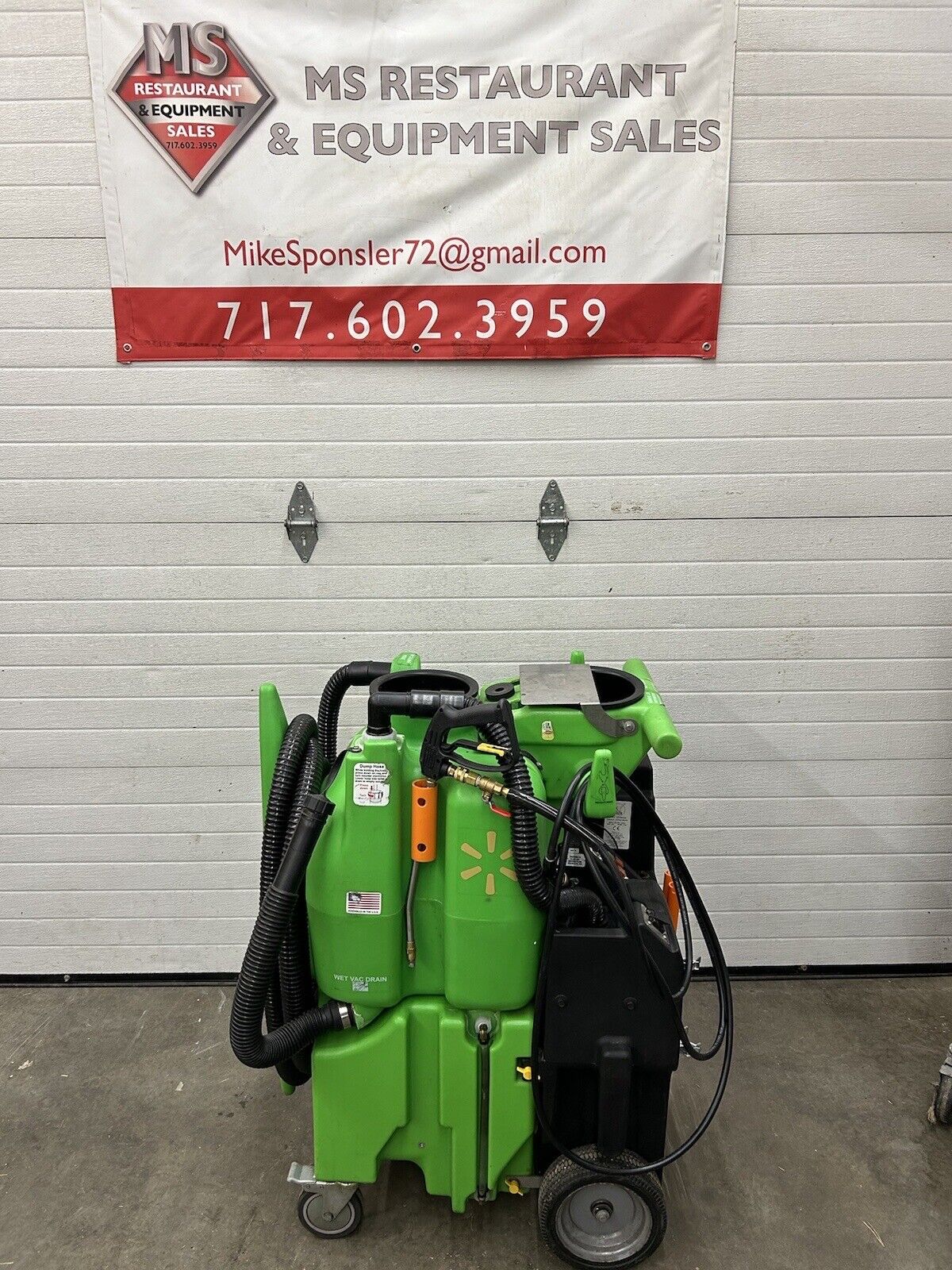

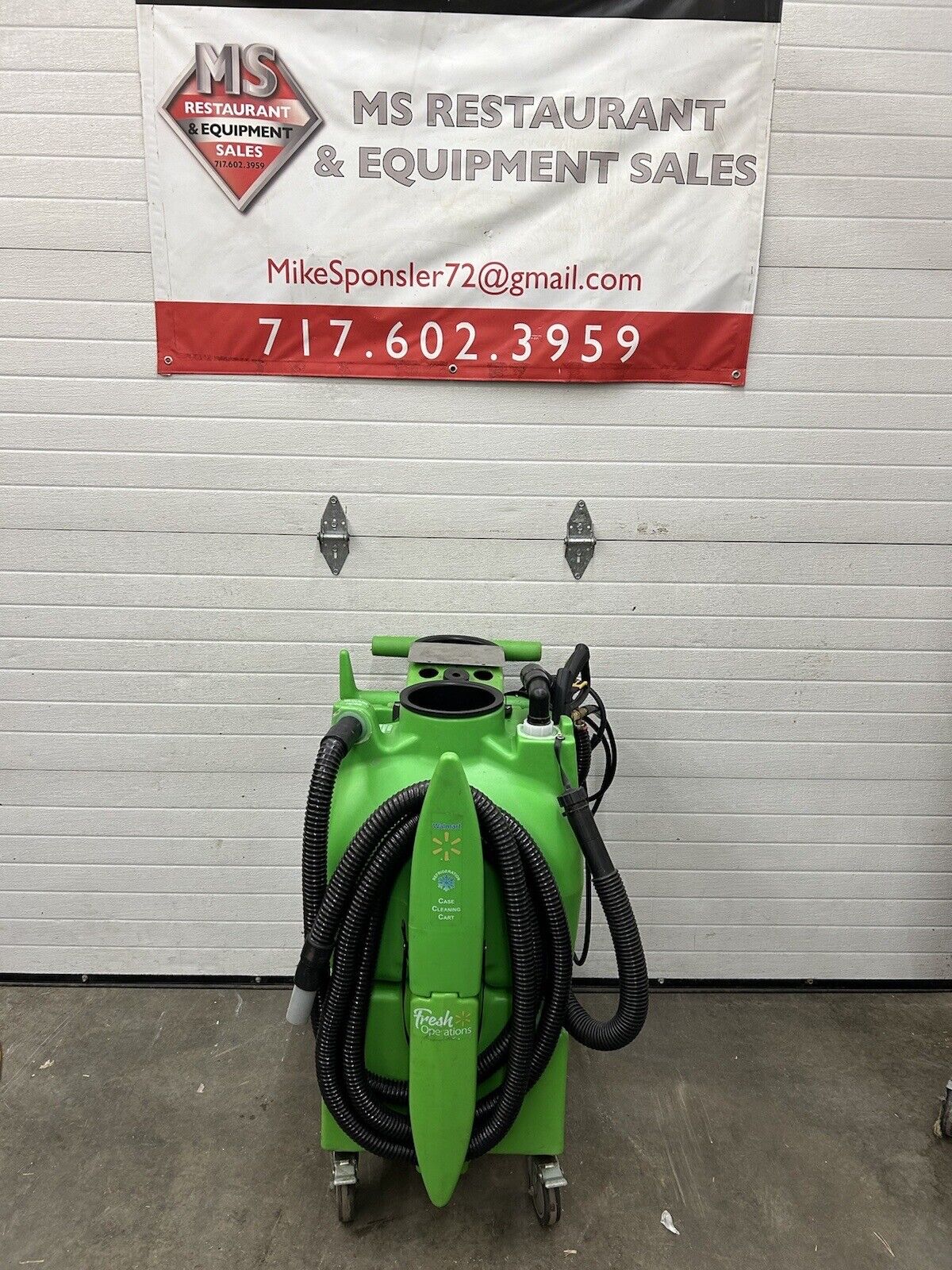

Kaivac KV1750CCDC Mobile Refrigerated Cooler Case Cleaning System
Clean Refrigeration Units Can Save Big Money
Kaivac’s patent-pending Cooler Case Cleaner offers a simple, effective solution for maintaining refrigerated display cases. With a specially designed, built-in indoor pressure washer and a powerful wet vacuum, the results are clean, safe, and odor-free coolers operating at peak efficiency. Plus, it takes less than half the time of conventional cleaning methods.
Why is this important? Because a clean refrigeration unit is critical for optimum performance and energy savings. Regular refrigeration cleaning helps ensure food safety, quality, and customer confidence. If not cleaned properly and frequently, the shelving and areas behind them can harbor potentially dangerous contaminants, creating a very high risk of biological contamination.
Dirty or clogged evaporator coils are a leading cause of refrigeration inefficiency or even failure. Compromised food quality and safety can result in wasted food products and lost sales dollars—or worse.
Kaivac Cooler Case Cleaner Features:
Kaivac’s Cooler Case Cleaner offers a simple, effective solution for successful maintenance of your commercial refrigeration units. With a specially designed built-in indoor pressure washer and a powerful wet vacuum, you can achieve clean, safe and odor-free coolers operating a peak efficiency in less than half the time of conventional cleaning methods.
1 Vacuum Wand Sturdy one-piece wand made of aircraft aluminum for cleaning multi-surface floors.
2 Instant Drain Attaches to a vacuum hose and suctions to the floor to extract low-lying moisture creating a vacuum-powered floor drain.
3 17 Gallon Retention Tank Holds 17 gallons of soiled water in upper tank. Easy access port combined with quick-flush dump hose simplified emptying and cleaning of tank.
4 Large Capacity Clean Water Tank Holds nearly 20 gallons of hot water. Tank can be filled with multi-faucet fill hose or easy-access fill port.
5 KaiTutor Video training system leads the operator through the cleaning process.
6 15 Ft. Spray Hose & Ergonomic Wand Spray pressure is delicate enough to use on condenser fins but powerful enough to clean heavily soiled areas.
Kaivac’s Cooler Case Cleaner offers a simple, effective solution for maintaining refrigerated display cases. With a specially designed built-in indoor pressure washer and a powerful wet vacuum, the results are clean, safe and odor free coolers operating at peak efficiency. Plus, it takes less than half the time of conventional cleaning methods.
Why is this important? Because a clean refrigeration unit is critical for optimum performance and energy efficiency as well as food safety and quality. Dirty or clogged evaporator coils are a leading cause of refrigeration inefficiency or even failure. Compromised food quality and safety can result in wasted food products and lost sales dollars — or worse.
In addition, if not cleaned properly and frequently, the shelving and areas behind them can harbor potentially dangerous contaminants, creating a very high risk of biological contamination.
Protected by multiple US patents. Multiple patents pending.
How It Works
The Cooler Case Cleaner is easy to use and cleans retail refrigeration units thoroughly in less time than conventional methods. Maintain your commercial refrigerators the Kaivac way for longer life and better performance every day.
1 Machine operator fills the machine with hot water and moves to the refrigeration unit to begin cleaning.
2 The operator quickly flushes all dirt, debris and organic contaminants from the evaporator coils and fan units using the built-in indoor pressure washer. Ergonomic wand provides the perfect balance of water pressure and volume for effective cleaning without harming delicate equipment.
3 All liquid, soil, and other matter are efficiently removed using the system’s 3-stage wet vacuum into the retention tank. Once done, use the dump hose to clean out the machine and make ready to clean the next unit.
Cleans Internal Basins and Coils
Fast and easy way to clean delicate refrigeration unit components with no risk of damaging the unit. Most customers report cleaning time is cut in half.
Unrivaled Soil and Odor Removal
Unique integration of gentle pressure washing with powerful vacuum extraction cleans better than any other method.
Operate At Peak Efficiency
Improve energy efficiency by 35% or more with regular cleaning plus extend the life of the unit by years.
Food Safety and Preservation
Proper case temperature control reduces food loss and waste while presenting best possible appearance to shoppers.
Easy To Learn
The simple system is easy to master with an on-board video training system that guides the operator step-by-step.
Increased Cooler Lifespan
Extend the life of expensive retail refrigeration equipment by cleaning evaporator coils and removing excess liquid and organic materials.
Improved Energy Efficiency
Retail refrigeration units represent a huge portion of grocery store energy usage. Cleaning coils regularly increases efficiency by 35% or more saving significant money.
Higher Shopper Satisfaction
Sanitary appearance and clean conditions improve consumer satisfaction and likely drive more purchases than less clean units.
Prevent Outbreaks
If not cleaned properly or often enough, shelving and areas behind them can harbor potentially dangerous contaminants creating a very high risk of biological contamination and food-borne illness.
Reduce Service Calls
Proper cleaning of refrigerated display cases eliminates a primary cause of unnecessary and costly service call charges.
Multipurpose Cleaning Machine
Cleans with wet vacuum power all around the store in dairy, produce, bakery, and more.
Very Fast ROI
Energy savings alone are significant, but improved productivity, longer cooler life, and few service calls adds up to rapid return on investment.
Physical Specifications *dimensions and capacities are approximate
Water Tank
16 gal (60,6l)
Spray Time
17 Minutes
Flow Rate
1 GPM (3,8 1/min)
Pressure
100 psi (6.89 bars)
Vac Tank
18.2 gal (68,9 l)
Dump Hose
26″ (66,04 cm) Long
Vac Motor Lift
130″ (330, 2 cm)
Vac CFM
112 cfm (3172 1/min)
HEPA Blow Feature
300 mph (482,7 km/h)
HEPA Filtered Exhaust
Yes – Replacable
Decibels (dB)
69 dB
Molded-In Chemical Holder
Gallon (3), Quart (1)
Chemical Switching
Dual/Quick Change
Safety Cap System
Yes
Metering Tip Settings
5 Settings
Vac Hose
25 ft (7,6 m) Rigid & 20 ft (6,1 m) Slinky
Spray Line
45 ft. (13,7 m)
Quick-Connect Gun
45ft (13,7 m)
Electric Cord
Yes
Blow Hose
50 ft (15 m)
Removable Engine Compartment
Yes – Black Box Technology
Weight
133 lb. (55,8 kg)
Size (H x L x W)
41″ x 29″ x 22″ (104,1 x 73,7 x 55,9 cm)
Hard Rubber Tires
N/A
Flat-free Non-marking Pneumatic Tires
(2) 8″ (20,3 cm)
Casters
(2) 5″ (12,7 cm), locking
Steel Climbing Wheels
Yes
Electrical Specifications
Volts (U.S.)
110 Volt – 60 Hz
Volts (Universal)
100-240hz; 50-60Hz
Amps Total
14.5 amp
GFCI
Yes

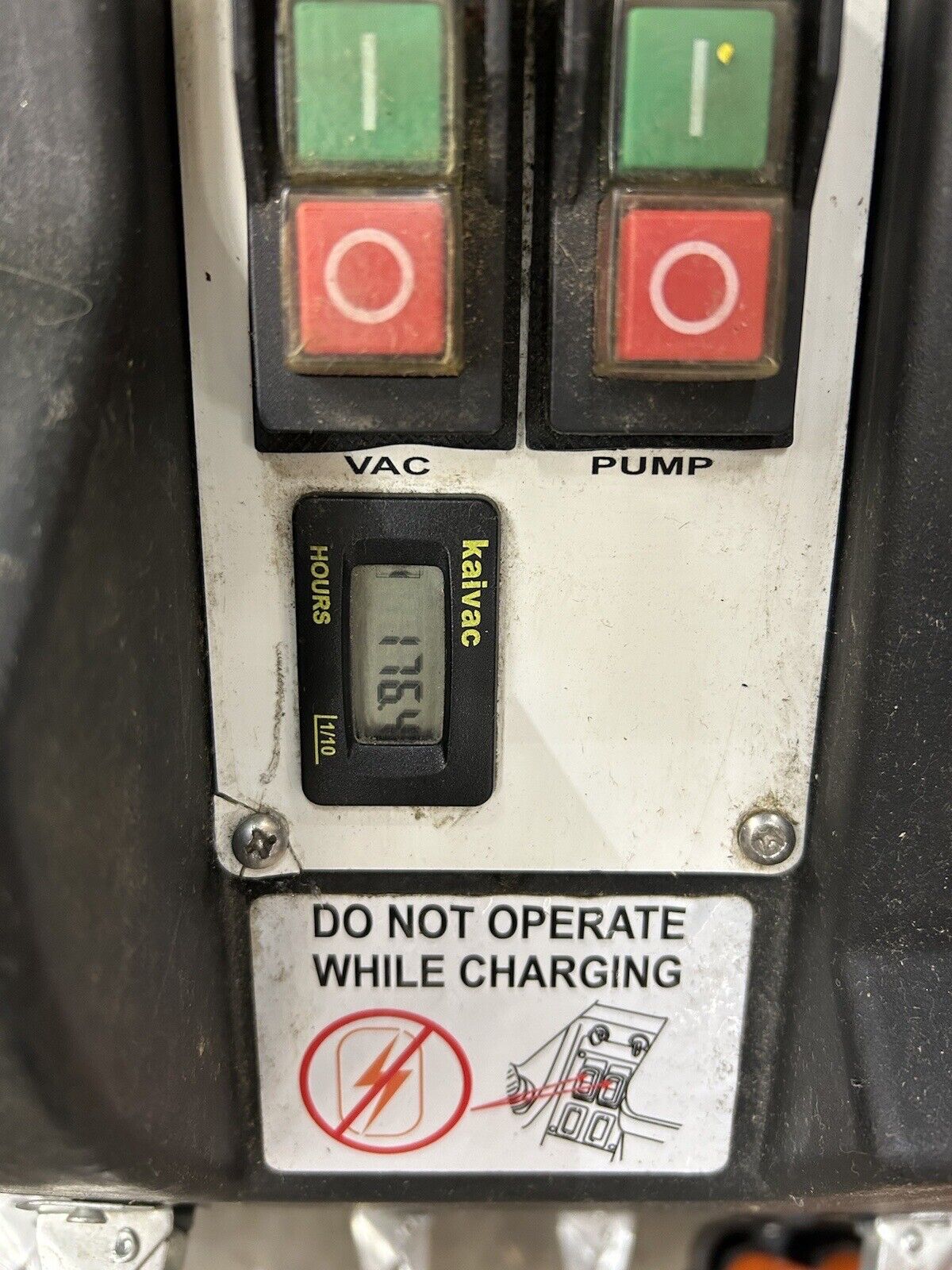

Run Time Hour Meter
Yes
Battery Specifications
Battery Box Weight
11 lb (5kg)
Battery Box Dimensions (H x W x D)
18″x7″x6″
Battery Storage & Operation Temperature
32°F (0°C) to 80°F (27°C)
Battery Storage & Shipping Charge
40-60% Charge (35-38VDC)
Battery Type
Lithium-Ion
Battery Box Voltage
36V DC
Battery Capacity
15 A-hr
Battery Current
15 A DC
Approx Run Time BOL (Beginning of Life)
64 min
Approx Run Time EOL (End of Life)
N/A
Approx Charge Time
6 hours
Charger Amps
4 Amps
Charger Voltage
100-240V 50/60 HZ
Charge Voltage
42 VDC
Battery Charge Gauge
Yes, Green or Red light
Approx Charge Cycles
400-500 at 80% Discharge
Tools & Attachment Specifications
Aluminum Vacuum Wand
Yes
14″ Squeeegee Head Brush
Yes
Blow Nozzle
Yes
Training Materials
Video and Manual
Window Squeegee
Yes
Metering Tip Kit
Yes
15 Gallon Tote Bag
Yes
