Manufactures Specs & Info:

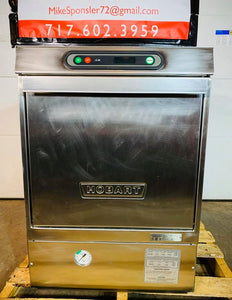

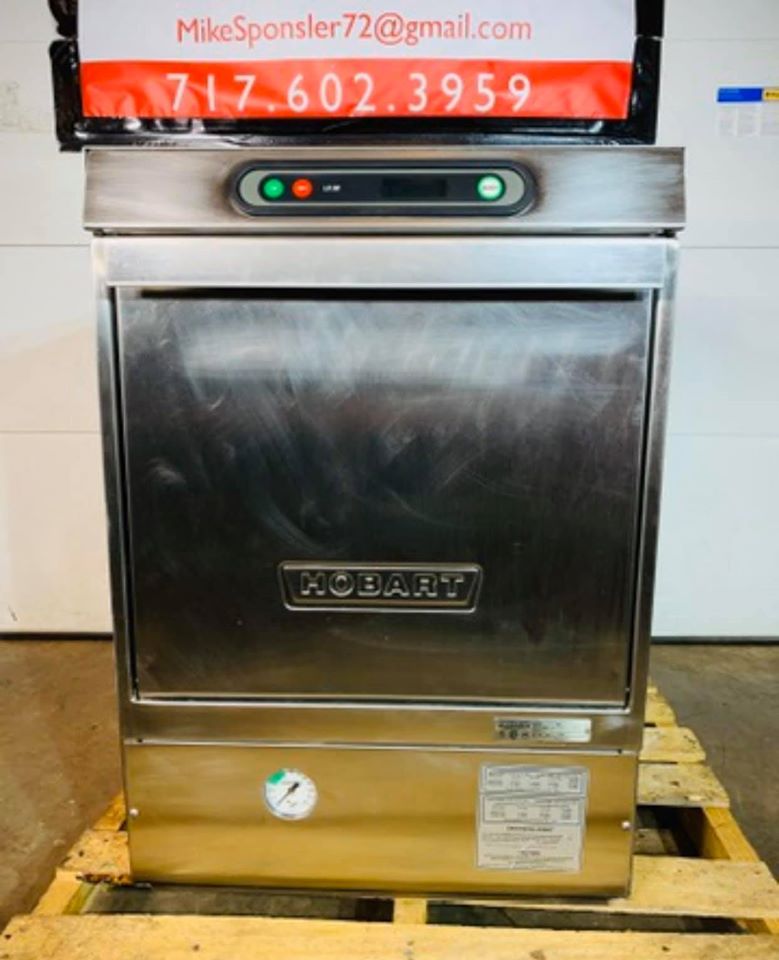

LX SERIES DISHMACHINE FOOD EQUIPMENT SPECIFICATIONS DESIGN:
Front opening, equipped for installation of both freestanding and undercounter-type operations. CONSTRUCTION: 304 series stainless steel tank, door and top panel. PUMP: Centrifugal-type, integral with motor, horizontally mounted. Pump capacity 54 gpm. MOTOR: 3⁄4" H.P., single phase, split-phase type, furnished for 120/60/1 or 208 or 240/60/1 electrical specification. Factory sealed lubrication. Inherent overload protection with auto reset.
WASH AND RINSE CYCLE: Complete automatic type, controlled by solid-state electronics. Cycle may be interrupted any time by opening door. Cycle continues when door is closed.
• LX18 and LX18C: Fill and dump model.
• LX30 and LX40: Initial cycle fills wash tank, to be recirculated each wash cycle. Some wash water is drained off before rinse cycle. Rinse cycle refreshes wash water and tank heat.
RINSE AND SANITATION:
• LX18H, LX30H, LX40H: Sanitation is accomplished by means of a built-in booster heater designed to raise temperature of water to a minimum of 180°F from an incoming water temperature of 140°F (110°F for LX30H and LX40H on heavy cycle setting with 70°F rise booster heater ratings).
• LX18C, LX30C, and LX40C: Sanitation is accom- plished by injection of proper amount of sodium hypochlorite solution (liquid bleach) into final rinse water to achieve a minimum of 50PPM sanitizing solution. Injection of sodium hypochlorite is accom- plished by a built-in sanitizing chemical pump.
PUMPED DRAIN: Machine automatically drains water through a built-in pump. Maximum 17" drain height permitted.
RACKING: Machines accommodate racks from 10" x 20" to 20" x 20". Also accepts 16" x 18" cafeteria trays.
CAUTION: Certain materials, including silver, aluminum and pewter are attacked by Sodium Hypochlorite solution in the chemical sanitizing mode of operation.
SPECIFICATIONS: Listed by Underwriters Laboratories Inc. and NSF International. As continued product improvement is a policy of Hobart Corporation, specifications are subject to change without notice.
MACHINE RATINGS LX18 LX18C LX18H NORMAL CYCLE - EXTENDED CYCLE LX30 LX30C LX30H LX40C LX40H Racks per Hour Rate 18 18 - 12 30 20 - 30 - 40 Dishes per Hour (25 per Rack Avg.) 450 450 - 300 750 1000 MAX Glasses per Hour (36 per Rack Avg.) 648 648 - 432 1080 1440 MAX Wash Motor - H.P. 3⁄4 Controls Solid State Tank Capacity - Gallons 3 Overall Dimensions - H x W x D 333⁄4" x 2315⁄16" x 263⁄4" Cycle Time - Minutes 3.3 3.3 - 5 2 1.5 - 2 - 3 Tank Heat N/A 1.5 KW Electric Booster Heater N/A 7 KW N/A Optional 6 KW N/A 6 KW Water Usage Per Rack - Gallons 5.2 2.6 - 5.2 1.2 Drain Design Pumped Chamber Height 17" Chemical Connection Capability Standard Detergent Pump Optional Standard Rinse-Aid Pump Optional (W Det Pump) Optional Sanitizer Pump N/A Standard N/A N/A Standard N/A Standard N/A Chemical Prime N/A Standard Peak Drain Flow - GPM 10 Service Diagnostics N/A Standard 70° Rise Booster N/A Optional N/A
