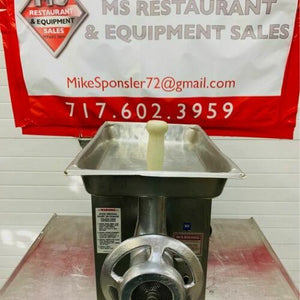

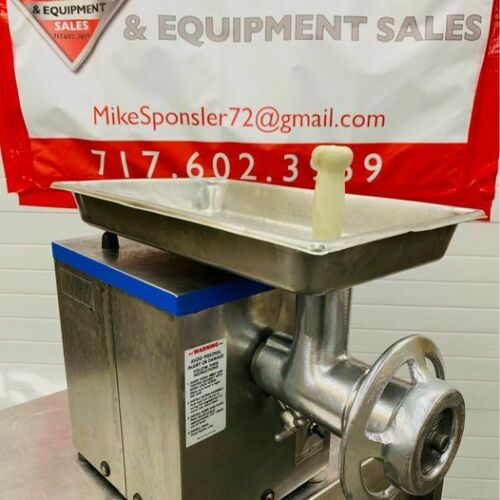

Biro 8-22 SS COUNTERTOP MANUAL FEED MEAT GRINDER #22 HEAD TESTED & WORKING
MODEL 822SS MANUAL FEED GRINDER
The BIRO 722 / 822SS / 922SS Series of Manual Feed Grinders is a group of reliable, durable, and inexpensive service grinders designed for restaurants, meat departments, and hunters. All of these grinders have specially constructed motors, which gives you all of the power and output you need in a grinder. All models are equipped with a single reduction HTD (high torque drive) belt system that provides maximum power without slippage for greater productivity. The bowl assembly and feed tray on each of the models can be removed without tools. Their simple, rugged construction gives you a grinder that is easy to clean and virtually maintenance free. With a 22 head size and straight or flared throat, you can choose the grinder that’s right for you. Reliability, durability, and low maintenance – BIRO Service Grinders.
SPECIFICATIONS:
MODEL
822SS Manual Feed Grinder
MOTOR
STATUS
HP (KW)
VOLTAGE
CYCLE
PHASE
AMPS
STD
1 (.75kw) OP
115/230
60
1
13.2/6.6
OPT
1 (.75kw) OP
240
50
1
6.2
OPT
1 (.75kw) OP
220/380
50
3
3.8/2.2
OPT
1 (.75kw) OP
220/440
60
3
3.8/1.9
Case: mirror finish stainless steel
FEED PAN
Removable stainless steel feed pans standard.
FEED PAN CAPACITY
Holds approximately 20 LBS. (9.1 KG)
BOWL
Tinned, straight sides
BEARINGS ON DRIVE SHAFT
Heavy duty thrust and radial – prelubricated
DRIVE SYSTEM
HTD (high-torque drive) steel wire power grip belt, 95% efficiency rated, non corrosive, no lubrication required
GRIND CAPACITY OUTPUT
All capacities are approximate through 1/8” hole plate and depend on product type, temperature, size, plate hole size, and feed rate
LBS/KGS PER MINUTE
10-16 lbs. (4.5-7.3 kgs)
STANDARD FEATURES
Stomper, operating and safety manual, 6 foot cord and plug all single phase. 6 foot cord less plug all three phase.
SIZE 22 KNIFE/PLATE
Required, extra cost. Various plate hole sizes available to fit your specific application.
CERTIFICATIONS
NSF USDA
WEIGHT NET
89 lbs. (40.3 kg)
WEIGHTS GROSS
121 lbs. (54.9 kg)
DIMENSIONS CRATED
L = 16” x W = 28 1⁄2” x H = 24” 406 mm x 724 mm x 610 mm
Item Number
LIT-22-22-22-218
We Ship worldwide. Shipping to a commercial address is $219. If you require liftgate service it’s an additional $75. If it’s being delivered to a residence there’s an additional $75 residential delivery fee on top of that. These charges are not ours it’s what the trucking companies charge. We ship via UPS freight. Local pickup available.
